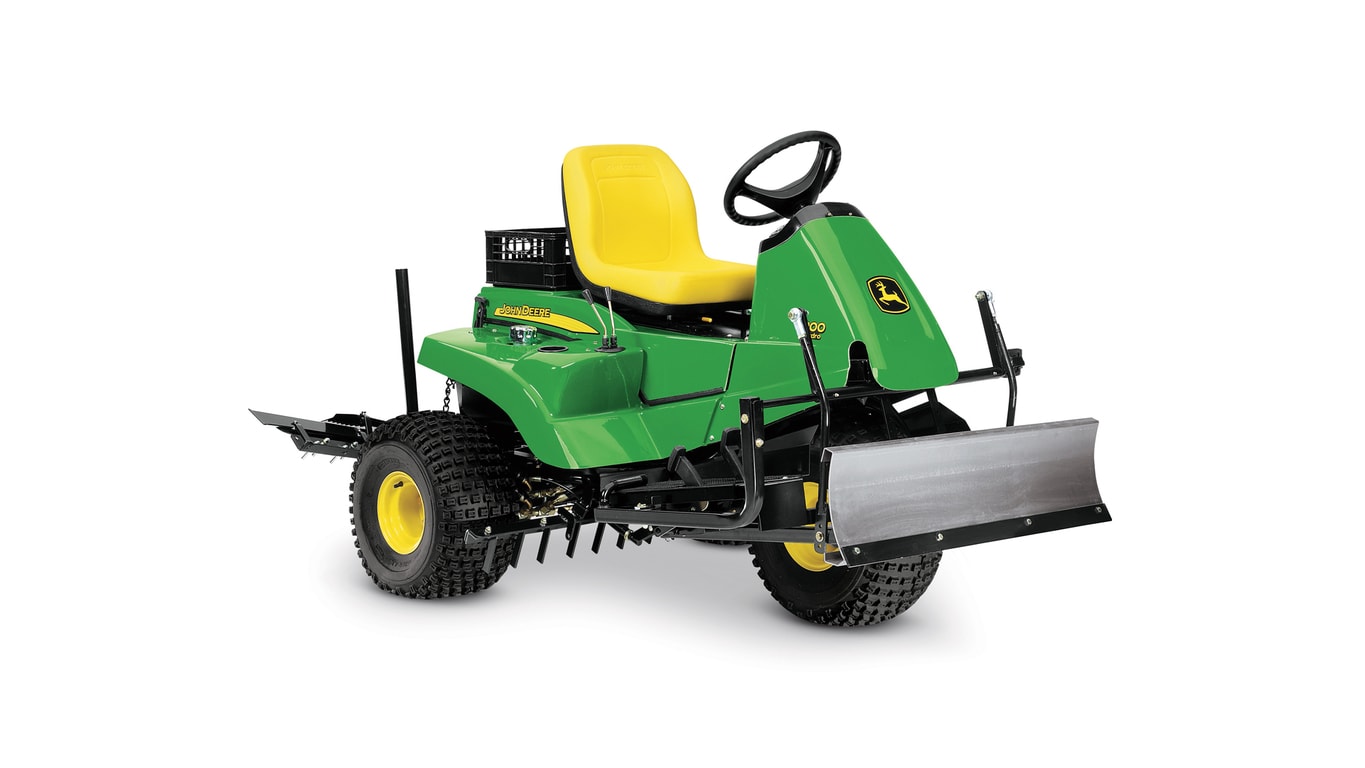

1200รถเกลี่ยทราย 1200 Hydro
• ประหยัดเชื้อเพลิงด้วยความเร็วสูงสุด 10 ไมล์ต่อชม.
• ชุดคราดมาตรฐานติดตั้งด้านหลังขนาด 72 นิ้ว ช่วยให้เกลี่ยพื้นที่ได้รวดเร็ว
• ที่นั่งปรับได้และบันไดเหยียบกว้าง
• ตัวถังรถด้านหลังที่ดูดีมีสไตล์
คุณลักษณะเฉพาะและการเปรียบเทียบ | ||||
---|---|---|---|---|
John Deere รุ่น 1200 รถเกลี่ยดิน 1200 Hydro |
Manufacturer | --- | |||
---|---|---|---|---|
Type | Air-cooled | |||
Displacement | 480 cc 29.3 cu in. |
|||
Horsepower | At 3600 rpm: 11.9 kW 16 hp Engine Manufacturer Gross Power per SAE J1940. Tested in accordance with SAE J1995. The engine hp and torque information are provided by the engine manufacturer for comparison purposes only. Actual operating hp and torque will be less. Refer to engine manufacturer's website for additional information. |
|||
Compression ratio | 8.5:1 | |||
Lubrication | Full pressure | |||
Oil capacity | Without filter: 1.4 L 1.5 U.S. qt |
|||
Oil filter | Standard | |||
Spark arrester muffler | Standard | |||
Idle speed | Low speed: 1,750 rpm fast idle speed (low load): 3,100 rpm |
Type | 12 V 20 amp |
|||
---|---|---|---|---|
Battery | 500 CCA 12 V |
|||
Starter | Electric | |||
Ignition | Transistor type | |||
Transistor type | Available |
Tank capacity | 14.8 L 3.9 U.S. gal. |
|||
---|---|---|---|---|
Fuel pump | Diaphragm-type | |||
Fuel required | Unleaded gasoline |
Type | Hydrostatic with 3 hydraulic wheel motors | |||
---|---|---|---|---|
Fluid capacity | 12.2 L 12.9 U.S. qt |
Forward or reverse | Reverse: 6 km/h 4 mph |
---|
Type | Dual rear wheel parking brakes; dynamic braking provided by closed loop hydrostatic powertrain |
---|
Type | Chain drive steering wheel with 10-to-1 gear ratio: 35.6 cm 14 in. |
---|
Front | One 22x11x8 NHS 34.5 kPa 5 psi |
|||
---|---|---|---|---|
Rear | Two 22x11x8 NHS 34.5 kPa 5 psi |
Width | 187 cm 73.5 in. |
|||
---|---|---|---|---|
Height | 114 cm 45 in. |
|||
Length | 216 cm 85 in. |
|||
Wheelbase | 1193.8 mm 47 in. |
|||
Ground clearance @ rake attachment | 241 mm 9.5 in. |
|||
Turning radius | Zero | |||
Weight (approx.) | 404 kg 890 lb |
|||
Rear-hitch towing capacity | --- |
Rake | --- | |||
---|---|---|---|---|
Width | --- | |||
Weight | --- | |||
Blades | --- | |||
Prong rake | --- | |||
Cultivator | --- | |||
Width | --- | |||
Weight | --- | |||
Front blade | --- | |||
Width | --- | |||
Height | --- | |||
Weight | --- | |||
60-in. aluminum front blade | --- | |||
Width | --- | |||
Height | --- | |||
Weight | --- | |||
Articulating front-mount core-removal blade | --- | |||
Width | --- | |||
Height | --- | |||
Weight | --- | |||
Wide- and narrow-interval scarifier tines attachment | --- | |||
Width | --- | |||
Tines | --- |
Mid-mount 64.5-in. (164.9 mm) scraper blade attachment | --- | |||
---|---|---|---|---|
Width | --- | |||
Height | --- | |||
Weight | --- | |||
Rear-mounted 60-in. field finisher | --- | |||
Width | --- | |||
Length | --- | |||
Weight | --- | |||
Hydraulic pump package | --- | |||
Couplers | --- | |||
Activation | --- | |||
Weight | --- |
Operator ear | 76 dBA | |||
---|---|---|---|---|
Measuring standard | ISO 11201 | |||
Attachments installed | --- |
